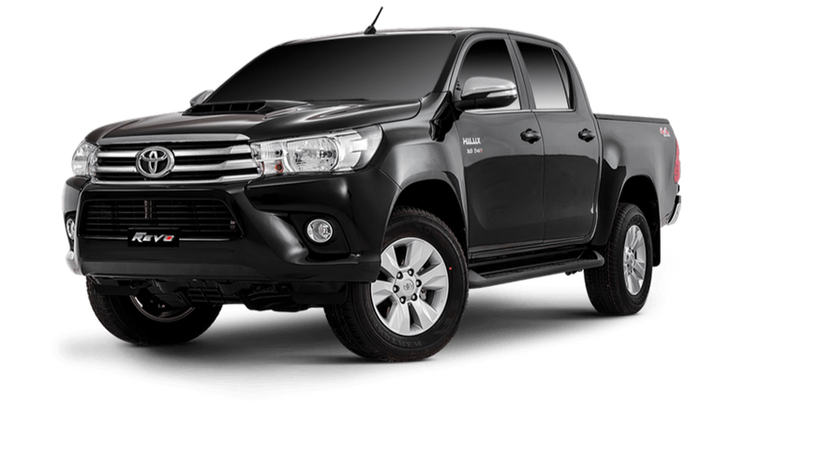

REVO G M/T SPECIFICATIONS
| DIMENSIONS | ||||
|---|---|---|---|---|
| Body Type | - | Wide | ||
| Exterior | L x W x H (mm) | 5335 x 1855 x 1815 | ||
| Deck Inside | L x W x H (mm) | 1525 x 1540 x 480 | ||
| Wheelbase | (mm) | 3090 | ||
| Tread | Front (mm) / Rear (mm) | 1535 / 1550 | ||
| Overhang | Front (mm) / Rear (mm) | 1000 / 1245 | ||
| Min. Running Ground Clearance | (mm) | 286 | ||
| Min. Turning Radius | Body (m) | 6.7 | ||
| Interior | L x W x H (mm) | 1697 x 1480 x 1168 | ||
| Seating Capacity (persons) | - | 5 | ||
| Gross Vehicle Weight | Total (kg) | 2910 | ||
| Curb Weight | Min. Options (kg) | 2030 | ||
| Fuel Tank Capacity | Total (L) | 80 | ||
| ENGINE SPECIFICATION | ||||
| Engine Code | 1GD-FTV Hi | |||
| Intercooler | 0 | |||
| Fuel Type | DIESEL | |||
| Displacement (cm3) | 2755 | |||
| No. of Cyls. & Arrangement | 4 Cylinders, IN LINE | |||
| Fuel System | COMMON-RAIL DIESEL ENGINE(D-4D) | |||
| Max. Output (kW@rpm) | 130@3400 | |||
| Max. Torque (Nm@rpm) | 420@1400-2600 | |||
| PERFORMANCE | ||||
| Transmission | Code | RC61F | ||
| Type | 6-Speed Manual | |||
| Transfer | System | Part-Time H2 H4 L4 | ||
| Type | Switch Type | |||
| Differential Lock | 0 | |||
| Brake Type | Front / Rear | Ventilated Disc/ LT Drum | ||
| Brake Control Valve | - | EBD | ||
| Tire & Wheel | Type | 265/65R17 Alloy | ||
| Suspension Type | Front / Rear | Double Wishbone / Rigid Leaf | ||
| Stabilizer Bar | Front | 0 | ||
| Cruise Control | - | X | ||
| Steering Type | Type | Hydraulic Power Steering | ||
| Adjustments | Tilt & Telescopic | |||
| SAFETY | ||||
| Light Reminder | 0 | |||
| Key Reminder | 0 | |||
| Shift-Lock System | X | |||
| Clutch-Start Safety | 0 | |||
| Vehicle Security System | Alarm | |||
| Immobilizer | 0 | |||
| Anti-Lock Braking System | 0 | |||
| Seatbelts | Front Seats | 3-point ELR x 2 + P/T + F/L | ||
| Rear Seats | 3-point ELR x 2 + 2 point NR | |||
| Child-Restraint System | ISOFIX | X | ||
| SRS Airbag | Front Airbag | Dual (Driver + Passenger) | ||
| Knee Airbag | Driver | |||
| EXTERIOR | ||||
| Headlamp | Bulb | Halogen | ||
| Leveling | X | |||
| System | Standard | |||
| Daytime Running Lamps | X | |||
| Front Grille | Chrome | |||
| Front Fog lamp | 0 | |||
| Side - Turn Signal | On Outer Mirrors | |||
| Outer Rear View Mirror | Chrome + Power Retractable | |||
| Door Handle | Coloured | |||
| Door-belt Moulding | Chrome | |||
| Side Visors | 0 | |||
| Side-Step | 0 | |||
| Deck Guard | X | |||
| Rear Glass | Sliding | |||
| Tailgate Handle | Material | |||
| Bumper | Front | Painted | ||
| Rear | Chrome with step | |||
| Mud Guard | Front + Rear | |||
| Air Spats | Front + Rear | |||
| Muffler Cutter | X | |||
| INTERIOR | ||||
| Cabin Scheme | Bronze | |||
| Seat Material | Premium Fabric | |||
| Door Trim | Fabric / Silver | |||
| Instrument Panel | Silver / Black | |||
| Power Door Lock | 0 | |||
| Wireless Jack Knife Key | 0 | |||
| Door Handles | Chrome | |||
| Power Windows | 0 | |||
| Window Wiper | Intermittent + Mist | |||
| Illuminated Entry System | 0 | |||
| Coat Hook | 0 | |||
| Shopping Hook | 0 | |||
| Sun Visor | D + P (Mirror w/ Lid) | |||
| Heater | 0 | |||
| Climate Control | Manual A/C | |||
| Side Defroster | 0 | |||
| Cool & Hot Box | X | |||
| Head Rest | Front Seat | Separate, D + P | ||
| Rear Seat | Separate,2 | |||
| Rear Armrest | 0 | |||
| Front Seat | Type | Separate / Premium | ||
| System | Manual | |||
| Slide Adjustment | Driver + Passenger | |||
| Recline Adjustment | Driver + Passenger | |||
| Height Adjustment | Driver-Side | |||
| Accessory Connector | 12 V DC | 0 | ||
| 220 V AC | X | |||
| Steering | Type | Urethane | ||
| Fingertip Controls | Audio, Tel, VR, MID-DISP | |||
| Speedometer | Premium | |||
| Multi Info Display | Small / Monochrome | |||
| Economy Meter | X | |||
| Infotainment System | Screen | 7" Capacitive Display | ||
| Inputs | DVD, Bluetooth, Screen Mirroring, Voice Recognition​, USB, HDMI | |||
| Navigation | 0 | |||
| Speakers | 4 Speakers | |||
| Wifi | X | |||
| Camera | Rear | |||
| O = Available / X = Not Available | ||||
No Broucher Found.
MODEL 2022
Ex Factory Price 7,659,000 =
Transportation 39,000 =
W.H.T For Filler 200,000 =
W.H.T For Non Filler 400,000 =
* The above prices are provisional and are subject to change without any prior notice, price prevailing at the time of delivery will be final.
*Vehicle with delivery time above 30 Days can be book on Partial payment of Rs. 1,500,000/- (Terms & Conditions Apply)
